2170494 - LAPP ETHERLINE® 2 Pair: CAT5e Stationary - 22 AWG - Black
2170494 - LAPP ETHERLINE® 2 Pair: CAT5e Stationary - 22 AWG - Black
$2,020.64 / 1,000 FT
$2.02 / 1 FT

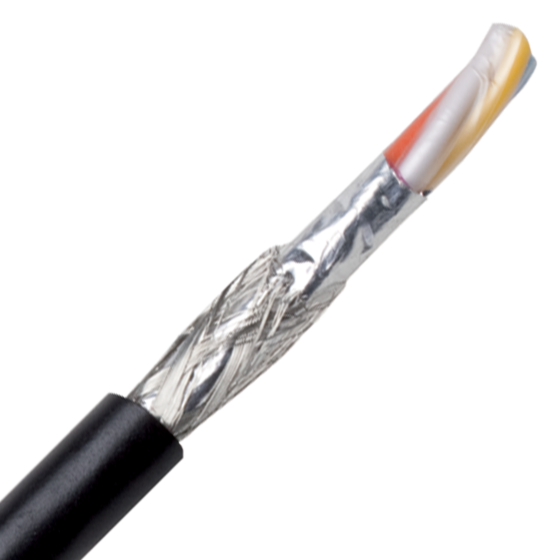

This LAPP ETHERLINE® CAT5e cable is a 22 AWG industrial Ethernet cable for stationary applications.
- Provides reliable network communication in demanding industrial environments The high quality foil and braid shield assure protection from EMI
- Cables meet the transmission requirements for Category 5
- Double screening ensures high transmission reliability in areas with EMI
- Highly oil- and abrasion-resistant Polyurethane (PUR) jacket
- Conforms to PROFINET® standard
- Suitable for EtherCAT® and EtherNet/IP applications
- Fast connect style allows for quick installation
- Suitable for POE per IEEE 802.3at
- LAPP part number 2170494
Must purchase in increments of 25.
Specifications
Download Spec Sheet| MANUFACTURER LAPP | MANUFACTURER PART NUMBER 2170494 | TYPE CAT5e |
| PROTOCOLS EtherCAT EtherNet/IP PoE PROFINET | SERIES ETHERLINE® | MOTION TYPE Stationary |
| AWG/GAUGE 22 | NUMBER OF PAIRS 2 pair | STRAND COUNT 1 |
| SHIELDING Foil Braid | POE (POWER OVER ETHERNET) Yes | NOMINAL OD (IN) 0.307 |
| NOMINAL OD (MM) 7.8 | CONDUCTOR COLOR white yellow blue orange | CONDUCTOR MATERIAL Bare Copper |
| CONDUCTOR STRANDING Stranded | JACKET COLOR Black | JACKET MATERIAL PVC |
| INSULATION MATERIAL Polyethylene | TEMPERATURE -13°F to +176°F -25°C to +80°C | VOLTAGE 125V |
| MIN BEND RADIUS 4x cable diameter | ENVIRONMENTAL Flame retardant Highly oil-resistant Abrasion-resistant | STANDARDS/APPROVALS UL Approved |
| APPLICATION Stationary applications; industrial field and cell level networking; PLCs sensors and other network devices; dry and damp rooms; transmission rates up to 10/100 Mbit/sec | WEIGHT LBS/MFT 42 |
