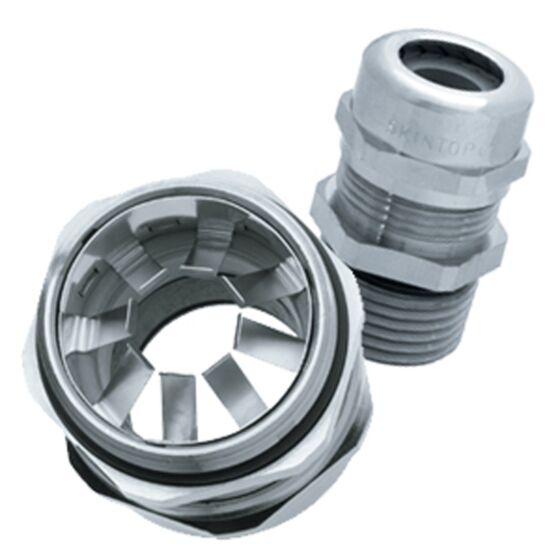

53112220 - LAPP SKINTOP® MS-SC Strain Relief Cable Gland - 11 PG - Metallic - Standard Thread

53112220 - LAPP SKINTOP® MS-SC Strain Relief Cable Gland - 11 PG - Metallic - Standard Thread
Part #: OLF53112220
Mfg #: 53112220
Manufacturer: LAPP

In Stock

$16.05 / EA

The LAPP SKINTOP® MS-SC PG is uniquely designed to address EMI concerns with its simplified grounding feature. In a few easy steps the cable is grounded, strain relieved, and sealed from moisture and dust in accordance with IP68. The cable glands' contact springs establish a continuous electrical path from the shield of the cable to the equipment ground, creating a secure shield connection.

Must purchase in increments of 50.

Specifications

Download Spec Sheet
MANUFACTURER
LAPP
MANUFACTURER PART NUMBER
53112220
SERIES
SKINTOP® MS-SC
THREAD TYPE
PG
THREAD SIZE
11
THREAD LENGTH (IN)
0.236
BODY MATERIAL
Nickel-plated brass
COLOR
Metallic
CLAMPING RANGE (IN)
0.157 - 0.394
CLAMPING RANGE (MM)
4 - 10
OVERALL LENGTH (IN)
1.26
BUSHING
CR
INSERT
Polyamide
LOCKNUT
Not Included
WRENCHING FLATS (IN)
0.787
DYNAMIC TEMPERATURE RATING
-13°F to +212°F
-25°C to +100°C
STATIC TEMPERATURE RATING
-40°F to +212°F
-40°C to +100°C
STANDARDS/APPROVALS
UL Approved
