TE Raychem DWP-125 2 inch Dual Wall Heat Shrink Tubing - Black
TE Raychem DWP-125 2 inch Dual Wall Heat Shrink Tubing - Black
Part #: RAYDWP-125-2-0
Mfg #: DWP-125 2-0
Manufacturer: TE Connectivity
Mfg #: DWP-125 2-0
Manufacturer: TE Connectivity
Contact 800-633-6339 for Availability
Request Quote for Price

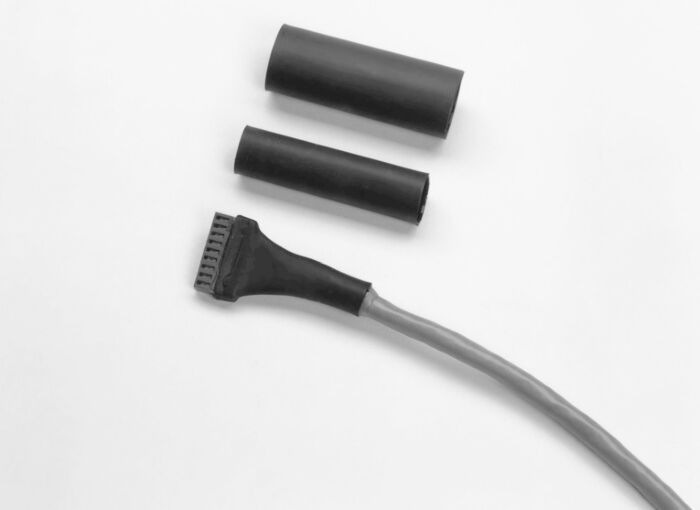

TE Connectivity's DWP-125 2 inch Polyolefin heat shrink tubing is an adhesive-lined, medium-wall heat-shrinkable tubing for applications requiring mechanical protection and sealing. Black. TE DWP-125 2-0.
Must purchase in increments of 100.
Specifications
Download Spec Sheet| MANUFACTURER TE Connectivity | MANUFACTURER PART NUMBER DWP-125 2-0 | SERIES DWP-125 |
| HEAT SHRINK Yes | SHRINK RATIO 3:1 | WALL TYPE Dual |
| MATERIAL Polyolefin | SIZE 2 | COLOR Black |
| EXPANDED ID (IN) 2 | EXPANDED ID (MM) 50.8 | RECOVERED ID MAX (IN) 0.8 |
| RECOVERED ID MAX (MM) 20 | NOMINAL RECOVERED WALL THICKNESS (IN) 0.1 | NOMINAL RECOVERED WALL THICKNESS (MM) 2.5 |
| OPERATING TEMPERATURE -40°F to 230°F (-40°C to 110°C) | RECOVERY TEMPERATURE 257°F (125°C) | FLAMMABILITY Flame-Retardant |
| FLEXIBILITY Flexible | STANDARDS/APPROVALS UL Approved CSA Approved | TRADE OR BRAND NAME RAYCHEM |
