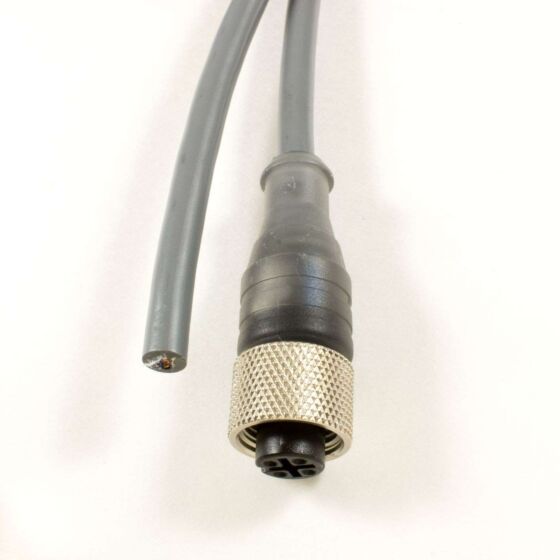

OBSOLETE - Alpha Connect Cordset - M12 Female Straight to Cut End - 24AWG 8 Poles - AR0800124 - Slate - 20M (65.6ft)

Name: OBSOLETE - Alpha Connect Cordset - M12 Female Straight to Cut End - 24AWG 8 Poles - AR0800124 - Slate - 20M (65.6ft)
Brand: Alpha Wire
SKU: ALPAR0800124-SL401
Price: 182.76 USD
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Part #: ALPAR0800124-SL401
Mfg #: AR0800124 SL401
Manufacturer: Alpha Wire

Contact 800-633-6339 for Availability

$182.76 / EA

Alpha Connect M12 cordsets handle flex applications up to 5 million flex life cycles. Foil Braid Shield. Zero Halogen Polyurethane Jacket. 20M (65.6ft) length. Alpha Wire part number AR0800124 SL401. Contact Lapp Tannehill today for additional information.

This product has been discontinued by the manufacturer. Please contact us to identify a suitable replacement product.

Must purchase in increments of 1.

Specifications

Download Spec Sheet

MANUFACTURER Alpha Wire	MANUFACTURER PART NUMBER AR0800124 SL401	SERIES Alpha Connect Flexible Cordsets
CONNECTORS M12 Female / Wire Leads	NUMBER OF POSITIONS 8	LENGTH 20 m
NUMBER OF CONDUCTORS 8	AWG/GAUGE 24	SHIELDING Foil Braid
JACKET COLOR Gray	JACKET MATERIAL Zero Halogen Polyurethane	TEMPERATURE -40°F to +176°F -40°C to +80°C
VOLTAGE 300V	IP RATING IP67 IP68	EQUIVALENT TO Turck E-RKS 8T Lumberg RKTS 8
