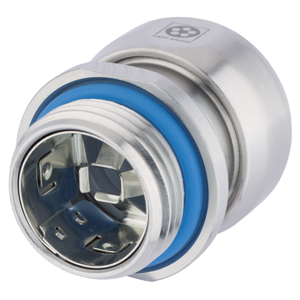

53806724 - LAPP SKINTOP® INOX SC Strain Relief Cable Gland - M20 x 1.5
53806724 - LAPP SKINTOP® INOX SC Strain Relief Cable Gland - M20 x 1.5
$134.95 / EA
LAPP SKINTOP® INOX SC is a stainless steel cable gland for EMC applications with special design features that prevent micro-organisms and bacteria from sticking to the surface. The gland has an IP68/69 rating and withstands high pressure and high-temperature washdowns. Typical applications can be found in the food & beverage and pharmaceutical industries. LAPP part number 53806724.
Must purchase in increments of 5.
Specifications
Download Spec Sheet| MANUFACTURER LAPP | MANUFACTURER PART NUMBER 53806724 | SERIES SKINTOP® INOX SC |
| THREAD TYPE Metric | THREAD SIZE 20 | THREAD LENGTH (IN) 0.315 |
| THREAD LENGTH (MM) 8.001 | BODY MATERIAL Stainless steel | COLOR Metallic |
| CLAMPING RANGE (IN) 0.276 - 0.493 | CLAMPING RANGE (MM) 7 - 12.5 | BUSHING Silicone |
| WRENCHING FLATS (IN) 0.946 | DYNAMIC TEMPERATURE RATING -40°F to +212°F -40°C to +100°C | STATIC TEMPERATURE RATING -40°F to +212°F -40°C to +100°C |
| IP RATING IP68 IP69 | STANDARDS/APPROVALS UL Approved CE Approved | ADDITIONAL STANDARDS NSF 169 (splash/non-food zone) |
