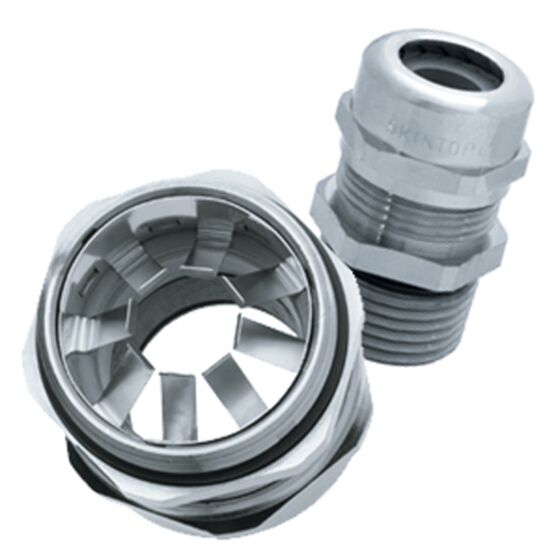

53112950 - LAPP SKINTOP® MS-SC Strain Relief Cable Gland - 1-1/4 NPT - Metallic
53112950 - LAPP SKINTOP® MS-SC Strain Relief Cable Gland - 1-1/4 NPT - Metallic
$74.89 / EA
The LAPP SKINTOP® MS-SC NPT is uniquely designed to address EMI concerns with its simplified grounding feature. In a few easy steps the cable is grounded, strain relieved, and sealed from moisture and dust in accordance with IP68. The cable glands' contact springs establish a continuous electrical path from the shield of the cable to the equipment ground, creating a secure shield connection.
Must purchase in increments of 10.
Specifications
Download Spec Sheet| MANUFACTURER LAPP | MANUFACTURER PART NUMBER 53112950 | SERIES SKINTOP® MS-SC |
| THREAD TYPE NPT | THREAD SIZE 1-1/4 | THREAD LENGTH (IN) 0.669 |
| BODY MATERIAL Nickel-plated brass | COLOR Metallic | CLAMPING RANGE (IN) 0.748 - 1.103 |
| CLAMPING RANGE (MM) 19 - 28 | OVERALL LENGTH (IN) 2.264 | BUSHING CR |
| INSERT Polyamide | LOCKNUT Not Included | WRENCHING FLATS (IN) 1.773 |
| DYNAMIC TEMPERATURE RATING -13°F to +212°F -25°C to +100°C | STATIC TEMPERATURE RATING -40°F to +212°F -40°C to +100°C | IP RATING IP68 |
| STANDARDS/APPROVALS UL Approved |
