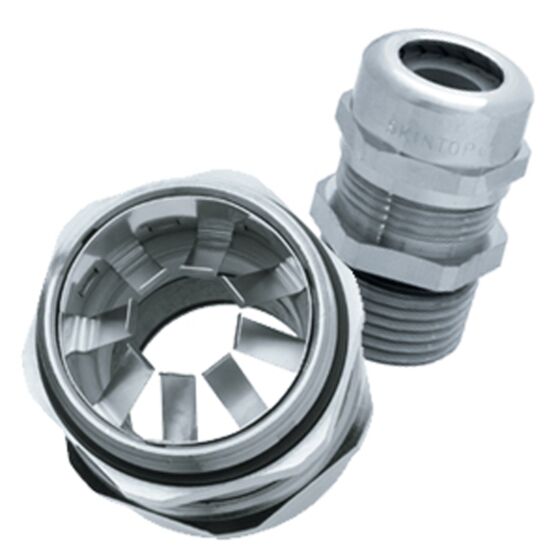

53112930 - LAPP SKINTOP® MS-SC Strain Relief Cable Gland - 3/4 NPT - Metallic
Mfg #: 53112930
Manufacturer: LAPP
In Stock
The LAPP SKINTOP® MS-SC NPT is uniquely designed to address EMI concerns with its simplified grounding feature. In a few easy steps the cable is grounded, strain relieved, and sealed from moisture and dust in accordance with IP68. The cable glands' contact springs establish a continuous electrical path from the shield of the cable to the equipment ground, creating a secure shield connection.
Specifications
Download Spec Sheet| MANUFACTURER LAPP | MANUFACTURER PART NUMBER 53112930 | SERIES SKINTOP® MS-SC |
| THREAD TYPE NPT | THREAD SIZE 3/4 | THREAD LENGTH (IN) 0.591 |
| BODY MATERIAL Nickel-plated brass | COLOR Metallic | CLAMPING RANGE (IN) 0.354 - 0.669 |
| CLAMPING RANGE (MM) 9 - 17 | OVERALL LENGTH (IN) 1.753 | BUSHING CR |
| INSERT Polyamide | LOCKNUT Not Included | WRENCHING FLATS (IN) 1.142 |
| DYNAMIC TEMPERATURE RATING -13°F to +212°F -25°C to +100°C | STATIC TEMPERATURE RATING -40°F to +212°F -40°C to +100°C | IP RATING IP68 |
| STANDARDS/APPROVALS UL Approved |
