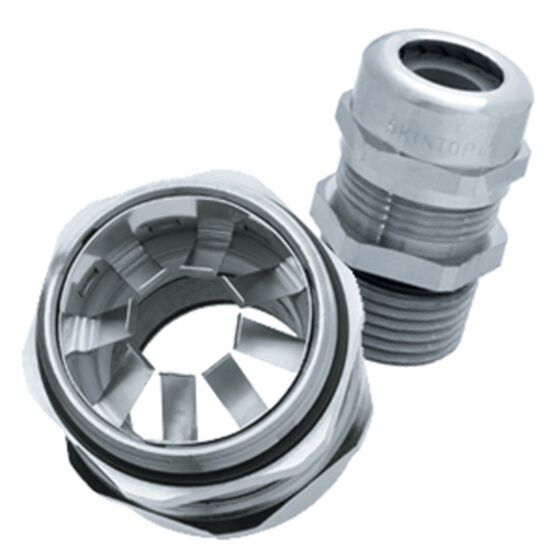

53112350 - LAPP SKINTOP® MS-SC Strain Relief Cable Gland - 21 PG - Metallic - Long Thread
53112350 - LAPP SKINTOP® MS-SC Strain Relief Cable Gland - 21 PG - Metallic - Long Thread
$32.23 / EA
The LAPP SKINTOP® MS-SC PG is uniquely designed to address EMI concerns with its simplified grounding feature. In a few easy steps the cable is grounded, strain relieved, and sealed from moisture and dust in accordance with IP68. The cable glands' contact springs establish a continuous electrical path from the shield of the cable to the equipment ground, creating a secure shield connection.
Must purchase in increments of 25.
Specifications
Download Spec Sheet| MANUFACTURER LAPP | MANUFACTURER PART NUMBER 53112350 | SERIES SKINTOP® MS-SC |
| THREAD TYPE PG | THREAD SIZE 21 | THREAD LENGTH (IN) 0.472 |
| BODY MATERIAL Nickel-plated brass | COLOR Metallic | CLAMPING RANGE (IN) 0.433 - 0.709 |
| CLAMPING RANGE (MM) 11 - 18 | OVERALL LENGTH (IN) 1.772 | BUSHING CR |
| INSERT Polyamide | LOCKNUT Not Included | WRENCHING FLATS (IN) 1.181 |
| DYNAMIC TEMPERATURE RATING -13°F to +212°F -25°C to +100°C | STATIC TEMPERATURE RATING -40°F to +212°F -40°C to +100°C | STANDARDS/APPROVALS UL Approved |
