53112270 - LAPP SKINTOP® MS-SC Strain Relief Cable Gland - 36 PG - Metallic - Standard Thread

53112270 - LAPP SKINTOP® MS-SC Strain Relief Cable Gland - 36 PG - Metallic - Standard Thread
Part #: OLF53112270
Mfg #: 53112270
Manufacturer: LAPP

In Stock

$101.44 / EA

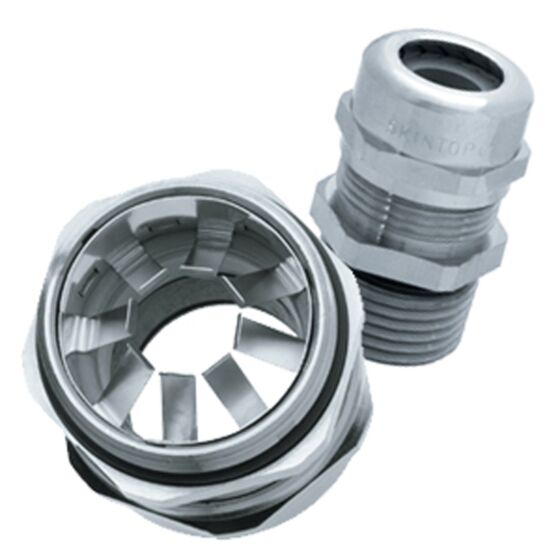

The LAPP SKINTOP® MS-SC PG is uniquely designed to address EMI concerns with its simplified grounding feature. In a few easy steps the cable is grounded, strain relieved, and sealed from moisture and dust in accordance with IP68. The cable glands' contact springs establish a continuous electrical path from the shield of the cable to the equipment ground, creating a secure shield connection.

Must purchase in increments of 5.

Specifications

Download Spec Sheet
MANUFACTURER
LAPP
MANUFACTURER PART NUMBER
53112270
SERIES
SKINTOP® MS-SC
THREAD TYPE
PG
THREAD SIZE
36
THREAD LENGTH (IN)
0.591
BODY MATERIAL
Nickel-plated brass
COLOR
Metallic
CLAMPING RANGE (IN)
0.748 - 1.260
CLAMPING RANGE (MM)
19 - 32
OVERALL LENGTH (IN)
2.441
BUSHING
CR
INSERT
Polyamide
LOCKNUT
Not Included
WRENCHING FLATS (IN)
1.969
DYNAMIC TEMPERATURE RATING
-13°F to +212°F
-25°C to +100°C
STATIC TEMPERATURE RATING
-40°F to +212°F
-40°C to +100°C
STANDARDS/APPROVALS
UL Approved
