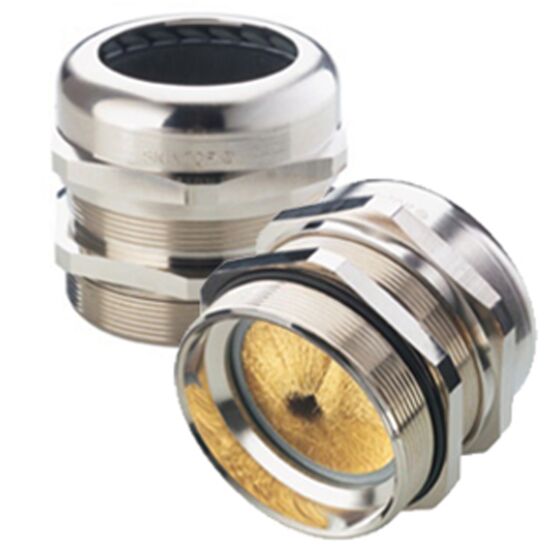

53112047 - LAPP SKINTOP® MS-NPT BRUSH Strain Relief Cable Gland - 1 NPT - Metallic
53112047 - LAPP SKINTOP® MS-NPT BRUSH Strain Relief Cable Gland - 1 NPT - Metallic
Part #: OLF53112047
Mfg #: 53112047
Manufacturer: LAPP
Mfg #: 53112047
Manufacturer: LAPP
In Stock
$80.15 / EA
The LAPP SKINTOP® MS-NPT provides centered, fixed strain relief with a liquid-tight and dust-proof seal, all in one step. Simply insert the cable, push the braid shield under the innovative EMC brush, tighten the cap, and the connection is made. Plus sizes offer extra large clamping range.
Must purchase in increments of 1.
Specifications
Download Spec Sheet| MANUFACTURER LAPP | MANUFACTURER PART NUMBER 53112047 | SERIES SKINTOP® MS-NPT BRUSH |
| THREAD TYPE NPT | THREAD SIZE 1 | THREAD LENGTH (IN) 0.591 |
| BODY MATERIAL Nickel-plated brass | COLOR Metallic | CLAMPING RANGE (IN) 0.433 - 0.827 |
| CLAMPING RANGE (MM) 11 - 21 | OVERALL LENGTH (IN) 1.891 | BUSHING Special Elastomer |
| INSERT Polyamide | LOCKNUT Not Included | WRENCHING FLATS (IN) 1.418 |
| DYNAMIC TEMPERATURE RATING -13°F to +212°F -25°C to +100°C | STATIC TEMPERATURE RATING -40°F to +212°F -40°C to +100°C | IP RATING IP68 IP69 |
| STANDARDS/APPROVALS UL Approved |
