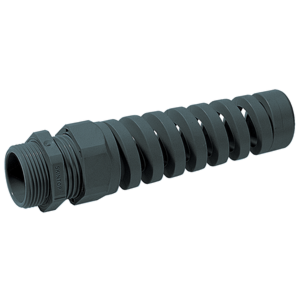

53111720 - LAPP SKINTOP® SLM FLEX Strain Relief Cable Gland - M20 x 1.5 - Black - No Locknut
53111720 - LAPP SKINTOP® SLM FLEX Strain Relief Cable Gland - M20 x 1.5 - Black - No Locknut
$5.83 / EA
LAPP SKINTOP® SLM FLEX is a liquid-tight, spiral strain relief that offers additional safety against overstress and conductor breakage. It is ideally suited for hand held equipment, moving machinery, and robotics. LAPP part number 53111720.
Must purchase in increments of 50.
Specifications
Download Spec Sheet| MANUFACTURER LAPP | MANUFACTURER PART NUMBER 53111720 | SERIES SKINTOP® SLM FLEX |
| THREAD TYPE Metric | THREAD SIZE 20 | THREAD LENGTH (IN) 0.315 |
| THREAD LENGTH (MM) 8.001 | BODY MATERIAL Polyamide | COLOR Black |
| CLAMPING RANGE (IN) 0.275 - 0.512 | CLAMPING RANGE (MM) 7 - 13 | OVERALL LENGTH (IN) 3.979 |
| BUSHING CR | LOCKNUT Not Included | WRENCHING FLATS (IN) 0.985 |
| DYNAMIC TEMPERATURE RATING -4°F to +212°F -20°C to +100°C | STATIC TEMPERATURE RATING -4°F to +176°F -20°C to +80°C | IP RATING IP68 |
| STANDARDS/APPROVALS UL Approved CE Approved |
