2170636 - LAPP ETHERLINE® 2 Pair: CAT5e 105C Plus Flexible - 22 AWG - Green
2170636 - LAPP ETHERLINE® 2 Pair: CAT5e 105C Plus Flexible - 22 AWG - Green
$3,511.83 / 1,000 FT
$3.51 / 1 FT

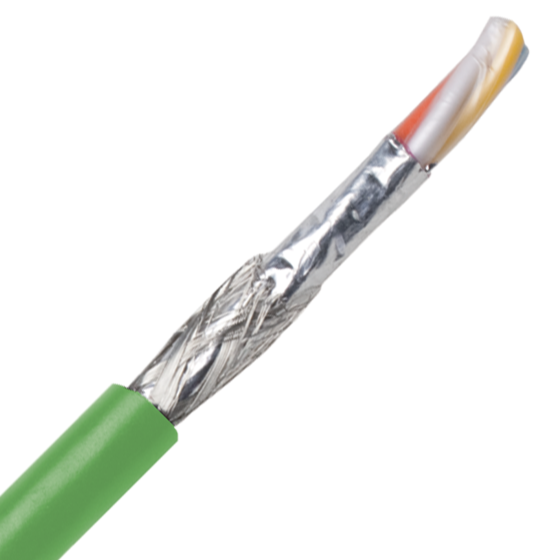

This ETHERLINE® CAT5e 105C is designed to perform in high temperature applications. The 2 pair construction includes foil and braid shielding and a Thermoplastic elastomer (TPE)-based jacket. LAPP part number 2170636.
Must purchase in increments of 1.
Specifications
Download Spec Sheet| MANUFACTURER LAPP | MANUFACTURER PART NUMBER 2170636 | TYPE CAT5e |
| PROTOCOLS EtherCAT EtherNet/IP PoE PROFINET | SERIES ETHERLINE® | MOTION TYPE Flexible |
| AWG/GAUGE 22 | NUMBER OF PAIRS 2 pair | STRAND COUNT 7 |
| SHIELDING Foil Braid | POE (POWER OVER ETHERNET) Yes | NOMINAL OD (IN) 0.244 |
| NOMINAL OD (MM) 6.2 | CONDUCTOR COLOR white yellow blue orange | CONDUCTOR MATERIAL Bare Copper |
| CONDUCTOR STRANDING Stranded | JACKET COLOR Green | JACKET MATERIAL Thermoplastic Elastomer (TPE) |
| INSULATION MATERIAL Polyethylene | TEMPERATURE -22°F to +221°F -30°C to +105°C | VOLTAGE 125V |
| MIN BEND RADIUS 15x cable diameter | ENVIRONMENTAL High-Temperature (221° permanent 248° temporary) Oil-resistant | APPLICATION Flexible high temperature applications; installation in hollow shaft between gear units and pitch system; PLCs sensotrs and other network devices. |
| WEIGHT LBS/MFT 36 |
