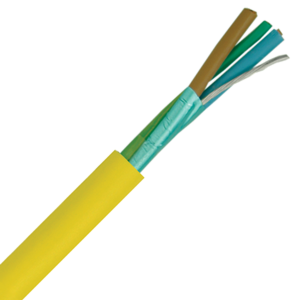

2170350 - LAPP UNITRONIC® Bus FOUNDATION FieldBus Bus Cable - 18 AWG/1 Pair + 18 AWG/1 Conductor - Yellow
2170350 - LAPP UNITRONIC® Bus FOUNDATION FieldBus Bus Cable - 18 AWG/1 Pair + 18 AWG/1 Conductor - Yellow
$7,330.80 / 1,000 FT
$7.33 / 1 FT
LAPP UNITRONIC® BUS FOUNDATION Fieldbus has been specifically designed to meet the demands of the hazardous industrial and process automation. Using a distributed architecture where the control is in the devices themselves, FOUNDATION Fieldbus integrates low-speed sensors and actuators with high-speed controllers and servers in a single system. Ideal for sensors, actuators and PLCs in intrinsically safe areas like magnetic flow meters, temperature transmitters, and pressure transmitters. LAPP part number 2170350.
Must purchase in increments of 1.
Specifications
Download Spec Sheet| MANUFACTURER LAPP | MANUFACTURER PART NUMBER 2170350 | TYPE Bus |
| PROTOCOLS Foundation Fieldbus | SERIES UNITRONIC® BUS FOUNDATION Fieldbus | AWG/GAUGE 18 & 18 |
| NUMBER OF CONDUCTORS 1 | CONDUCTOR MATERIAL Bare Copper | CONDUCTOR STRANDING Stranded |
| SHIELDING Foil Braid | JACKET COLOR Yellow | JACKET MATERIAL PVC |
| NOMINAL OD (IN) 0.311 | NOMINAL OD (MM) 7.9 | VOLTAGE 300V |
| TEMPERATURE -13°F to +221°F -25°C to +105°C | FLEXIBILITY Stationary | ATTRIBUTES Multi-Conductor |
| STANDARDS/APPROVALS UL Approved |
