1023295 - LAPP ÖLFLEX® SERVO 7DSL - 12 AWG 8 conductors- Orange
1023295 - LAPP ÖLFLEX® SERVO 7DSL - 12 AWG 8 conductors- Orange
$12,930.51 / 1,000 FT
$12.93 / 1 FT

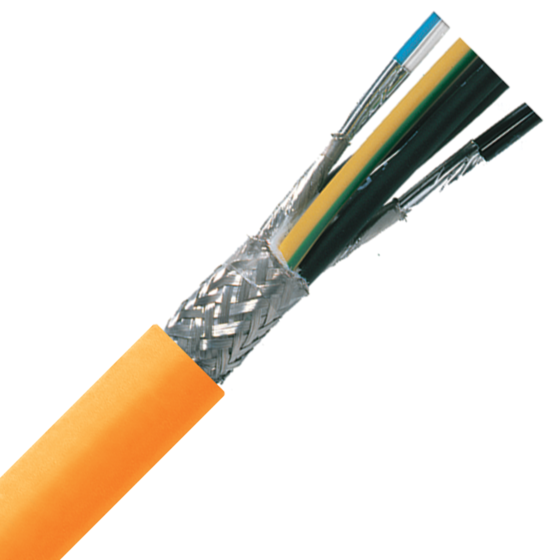

LAPP ÖLFLEX® SERVO 7DSL is a specially designed hybrid cable suitable for fixed or stationary installations in Hiperface DSL® motor-feedback systems. It is EMC compliant. For continuous flexing installations, ÖLFLEX® SERVO FD 7DSL is the right cable. 12 AWG / 4c + (18 AWG/ 1 pr) + (22 AWG/ 1 pr). LAPP 1023295
Must purchase in increments of 1.
Specifications
Download Spec Sheet| MANUFACTURER LAPP | MANUFACTURER PART NUMBER 1023295 | SERIES ÖLFLEX® SERVO 7DSL |
| AWG/GAUGE 12 | NUMBER OF CONDUCTORS 8 | CONDUCTOR MATERIAL Bare Copper |
| CONDUCTOR STRANDING Stranded | SHIELDING Braid | JACKET COLOR Orange |
| JACKET MATERIAL PVC | NOMINAL OD (IN) 0.622 | NOMINAL OD (MM) 15.8 |
| VOLTAGE 1000V | TEMPERATURE RANGE -40°F to +176°F -40°C to +80°C | ATTRIBUTES Multi-Conductor |
| STANDARDS/APPROVALS UL Approved CE Approved |
